Product Detail

Portable fiber optic test tool handheld Optical Power Meter /OPM

Item
Optical power meter
Description
optical power meter is an accurate and durable handheld meter designed for the installation, operation and maintenance of optical fibre network. It is a compact device with backlight switch and auto power on-off ability. Besides, it provides ultra-wide measurement range, high accuracy, user self-calibration function and universal port. In addition, it displays linear indicators (mW) and non-linear indicators (dBm) in one screen at the same time.
Collect
Details

Portable fiber optic test tool handheld Optical Power Meter /OPM

Feature:

Self calibration by user himself

Rechargeable lithium battery supports continuous work for up to 48 hours.

Linear indicators (mW) and non-linear indicators (dBm) display in one screen

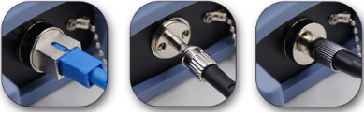

UniqueFC/SC/ST universal port, no complex conversion

Optional auto power-off ability

BacklightON/OFF

Application:

Telecom Maintenance

CCTV Maintenance

Comprehensive cable construction system

Optical instruments research and development

Optical communication education and lab testing

Other optical project


Specifications


Wavelength(nm)

800-1700

Calibrated(nm)

850, 1300, 1310, 1490, 1550, 1625

Detector type

InGaAs

Measurement Range(dBm)

  -70~+6    -50~+26

Uncertainty (dB)

± 0.022 (5%)

linearity (dB)

0.03

Display resolution(dB)

0.01

Date storage capacity

1000

Optical Connector type

FC,SC,ST interchangeable

Alkaline battery

3*AA,1.5V

Communication Port

USB

Battery Operating time   (h)

200

Operation Temperature(°C)

-10~+60

Storage Temperature(°C)

-25~+70
