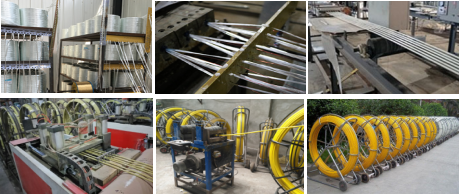

Fiberglass Conduit Rods Tracing FRP Cable Duct Rod

Item
Fiberglass Conduit Rods
Description
Duct Rodder applies in tow leadrope through a pipe, it is auxiliary means. Surface smooth and high resilience, so the FRP perforator with ease passes the narrow channel. Perforator consists of two parts: the glass fiber strengthen the level, the high-pressured low density polyethylene protective layer(smooth, firm , can resist the adverse circumstance). It has time saving reducing effort, improving efficiency, etc
Collect
Details

Fiberglass Conduit Rods Tracing FRP Cable Duct Rod

Feature:

 Fiber glass rod inner: Extruded process made of E-fiberglass and high quality UPR at high temperature.

 Fiber glass rod outer: developed composite materials.

 Assembly: metal frame sprayed paint; rubber wheels assembly for easy transportation; Guide rollers for rotary coupling; parking brake for the flexible rod control.

 Copper wire inside is optional, which is for tracing easily or other professional usage.

 Rolling bearing cage (wheel transport) for mobility will be light and easy to use.

 Feed device allows rod to feed out or be back with easy push or pull of rod

 Rustproof bull-nose pulling eye and accessories



Specifications


Model specification

4.5mm,6mm,8mm,10mm,11mm,12mm etc.

Length

30,50,60,80,100,120,150,180,200 etc.

Material

Fiberglass (inner) and high density polytgtkebe(outer)

Density

>1.9gr/cm3

Working temperature

- 40 to + 80

Minimum pulling strength

4000 N±5%

Tensile Modulus

>46.500Mpa

Consistency of rod

137gr/m

Flexural Modulus

>46.500Mpa

Elongation at Break

2.5-3%

Min. Bending Radius

388m

Tensile Strength

>15N/mm2

Environmental Stress & Crack Resistance

>1000hr
