Fiber tools OPM with VFL, Multi meter Optical Fiber Power Meter and Visual Fault Locator

Item
OPM with VFL
Description
Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and Fiber faults tracing visually
Collect
Details

Fiber tools OPM with VFL, Multi meter Optical Fiber Power Meter and Visual Fault Locator

Feature:

Self calibration by user himself

Rechargeable lithium battery supports continuous work for up to 48 hours.

Linear indicators (mW) and non-linear indicators (dBm) display in one screen

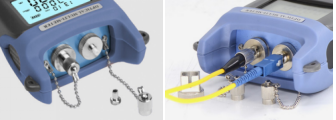

UniqueFC/SC/ST universal port, no complex conversion

Optional auto power-off ability

BacklightON/OFF

Application:

Telecom Maintenance

CCTV Maintenance

Comprehensive cable construction system

Optical instruments research and development

Optical communication education and lab testing

Other optical project


Specifications

Wavelength(nm)

800-1700

Calibrated(nm)

850, 1300, 1310, 1490, 1550, 1625

Detector type

InGaAs

Measurement Range(dBm)

  -70~+6    -50~+26

Uncertainty (dB)

± 0.022 (5%)

linearity (dB)

0.03

Display resolution(dB)

0.01

Date storage capacity

1000

Optical Connector type

FC,SC,ST interchangeable

Alkaline battery

3*AA,1.5V

Communication Port

USB

Battery Operating time   (h)

200

Operation Temperature(°C)

-10~+60

Storage Temperature(°C)

-25~+70
